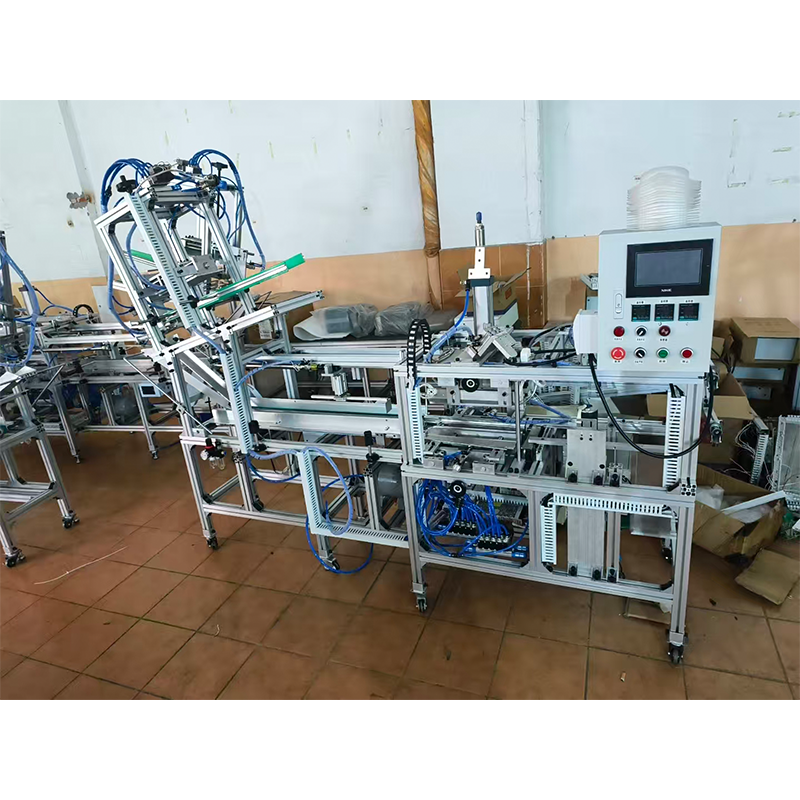

Full-Automatic Blister Three-Flap Flanging Machine

Machine Introduction

1. Automatic feeding, automatic blister peeling, automatic flanging, and automatic stacking (with automatic flanging count function). It allows free adjustment of product size within a certain range, and one machine can produce multiple types of products.
2. Standard output: 1,100-1,500 products per hour.
3. One operator can handle 3-6 machines simultaneously.
4. Basic models and specifications of the machine:
a.) Standard models: Two basic size specifications, 350x260mm and 450x260mm;
b.) Sizes for products beyond the standard models can be customized and manufactured, with only a slightly longer delivery time.
5. PLC control: The operation time can be freely set according to production conditions, facilitating automated operation.
6. Total machine power: 1.5kw, with low power consumption.
7. No restrictions on the thickness or material of flanged products.
8. Input voltage: 220V/50Hz; Heating temperature: 0~300℃ (adjustable); Working air pressure: 0.6Mpa; Air consumption per machine: 0.25 cubic meters per minute.
9. Overall machine dimensions:
Model 350: 2.2m (L) x 0.6m (W) x 1.8m (H)
Model 450: 2.5m (L) x 0.6m (W) x 1.9m (H)

Machine Applications:
1. Suitable for flanging common card-insert blister packaging materials such as PVC, PETG, and APET.
2. Applicable to plastic packaging in fields like electronics, hardware, stationery, toys, plastics, and medical care.
3. Performs automatic flanging treatment on formed products.

Machine Features:
1. Automatic feeding, automatic flanging, automatic stacking, automatic counting, and automatic update of the flanging base plate.
2. High cost-performance ratio and high production efficiency; one operator can operate 3-10 machines at the same time.
3. Precise control of flanging accuracy to ensure product consistency after flanging.
4. All components of the machine are modular, making debugging very convenient and simple.

Supplementary Note:
Users can freely choose between standard flanging base plates and universal flanging base plates according to the characteristics of their own products.

Machine Operation Video
Related Video
Machine Details
Use Case

Machine Operation Video

Related Video / VIDEO

Machine Details

Industries for Application of Automatic Blister Three-Fold Edge Machine: 1.Hardware tools: packaging for screwdrivers, drill bits, wrenches, blades, measuring tools, small toolbox sets, etc. 2.Electronic accessories: packaging for phone cases, charging cables, data cables, batteries, headphones, small speakers, remote controls, etc. 3.Toys and stationery: packaging for toy figures, building block sets, stationery sets, pens, calculators, chess sets, etc. 4.Daily consumer goods: packaging for toothbrushes, razors, small household appliances, kitchenware, cosmetics, etc. 5.Pharmaceutical and health care: retail packaging for certain medical devices and health care products. 6.Mobile phone industry: packaging for mobile phone cases. 7.New energy industry: packaging for LED flashlights. Value Summary: 1.Highly specialized and automated, designed specifically for three-fold edges, with precise equipment positioning. 2.High precision and high quality, ensuring firm folded edges, accurate folding positions, and attractive finished products. 3.High efficiency and high stability, greatly improving packaging efficiency and promoting industry development.
